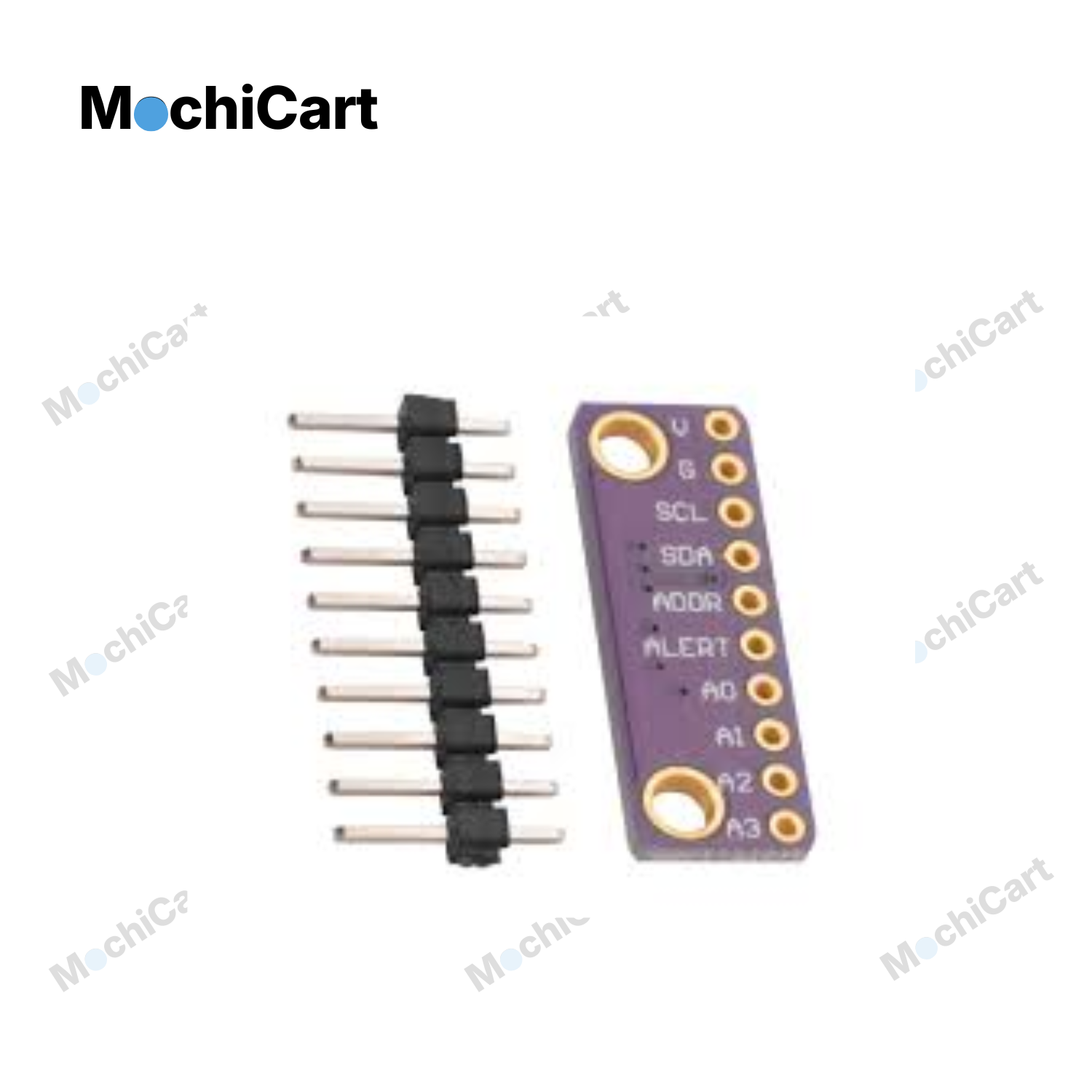

ADS1115 16-Bit Analog to Digital Converter Module - Purple

Achieve precision analog measurements with the ADS1115 16-Bit Analog to Digital Converter Module. This high-resolution ADC breakout board features Texas Instruments' ADS1115 chip, providing accurate analog-to-digital conversion with programmable gain for Arduino, Raspberry Pi, and microcontroller projects requiring precise sensor readings.

Key Features:

• Premium ADS1115 16-bit ADC chip from Texas Instruments
• 4 single-ended or 2 differential input channels
• Programmable gain amplifier (PGA) for flexible input ranges
• I2C interface for easy microcontroller integration
• High precision: 16-bit resolution (65,536 levels)
• Programmable data rate: 8 to 860 samples per second
• Internal voltage reference for stable measurements
• Low power consumption
• 3.3V or 5V logic compatible
• Purple PCB with clear pin labeling
• Compact breakout board design
• Perfect for Arduino, Raspberry Pi, ESP32 projects

Technical Specifications:

• IC Chip: ADS1115 (Texas Instruments)
• Resolution: 16-bit
• Input Channels: 4 single-ended or 2 differential
• Interface: I2C (TWI)
• I2C Address: 0x48 (default, configurable to 0x49, 0x4A, 0x4B)
• Operating Voltage: 2.0V to 5.5V
• Logic Level: 3.3V or 5V compatible
• Programmable Gain: ±6.144V, ±4.096V, ±2.048V, ±1.024V, ±0.512V, ±0.256V
• Sample Rate: 8, 16, 32, 64, 128, 250, 475, 860 SPS
• Accuracy: ±0.3% (typical)
• Board Color: Purple

Ideal Applications: Precision sensor measurements, battery voltage monitoring, temperature sensing, pressure sensors, load cells, data acquisition systems, Arduino/Raspberry Pi projects, IoT devices, industrial monitoring, and any application requiring high-resolution analog-to-digital conversion!
