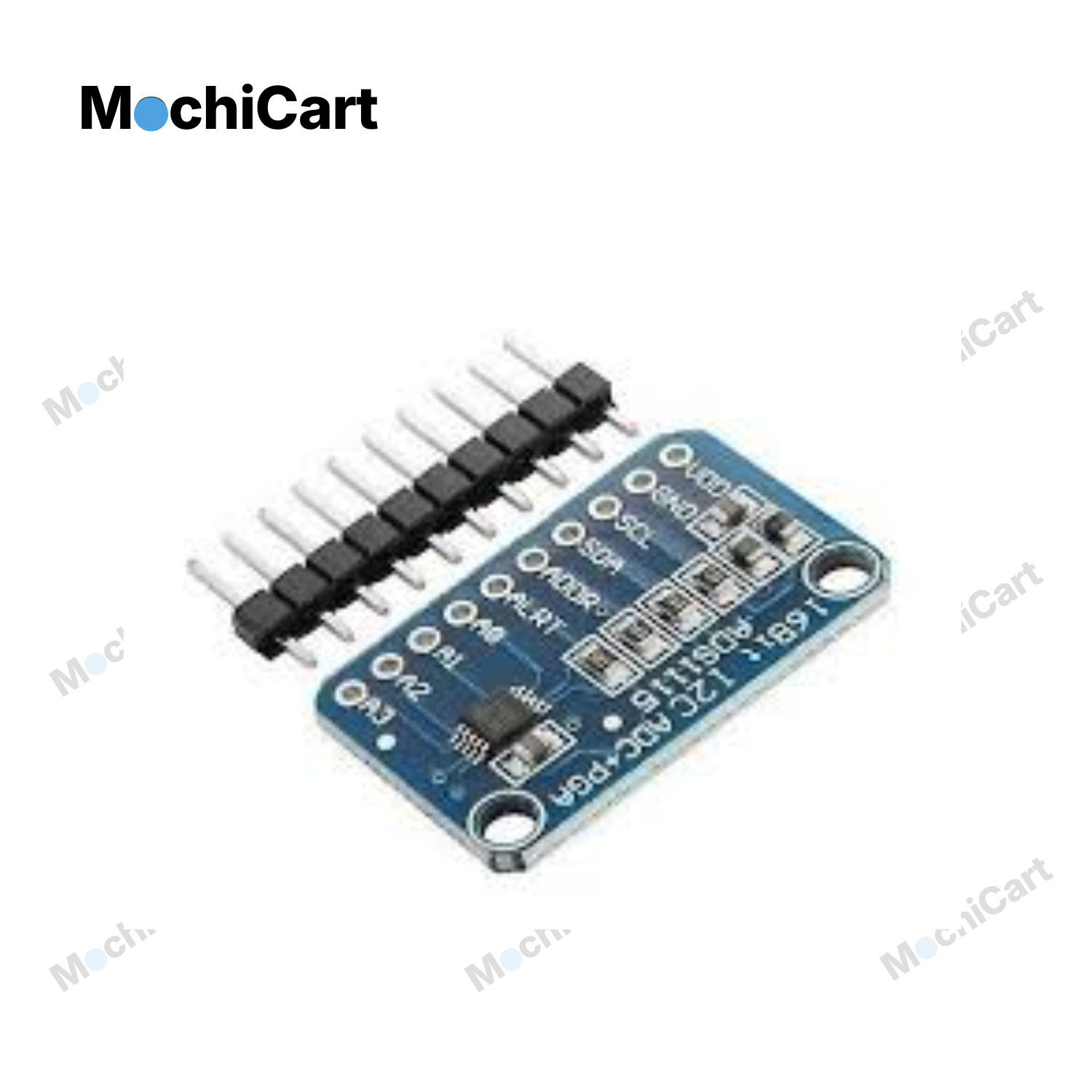

ADS1115 ADC Module 16-Bit Analog to Digital Converter

Unlock precise analog measurements with the ADS1115 ADC Module. This professional-grade 16-bit analog-to-digital converter features Texas Instruments' industry-leading ADS1115 chip, delivering exceptional accuracy and flexibility for sensor interfacing, data acquisition, and precision measurement applications.

Key Features:

• High-precision ADS1115 16-bit ADC chip from Texas Instruments
• 4 single-ended or 2 differential analog input channels
• Programmable gain amplifier (PGA) for versatile input ranges
• I2C/TWI interface for simple microcontroller connection
• Ultra-high resolution: 16-bit (65,536 discrete levels)
• Adjustable sample rate: 8 to 860 samples per second
• Built-in voltage reference for measurement stability
• Multiple I2C addresses for connecting up to 4 modules
• 3.3V and 5V logic level compatible
• Low power consumption for battery applications
• Compact breakout board with header pins
• Compatible with Arduino, Raspberry Pi, ESP32, STM32

Technical Specifications:

• IC Chip: ADS1115 (Texas Instruments)
• Resolution: 16-bit
• Input Channels: 4 single-ended or 2 differential
• Interface: I2C (TWI)
• I2C Addresses: 0x48, 0x49, 0x4A, 0x4B (selectable)
• Operating Voltage: 2.0V to 5.5V
• Logic Level: 3.3V or 5V compatible
• Programmable Gain: ±0.256V to ±6.144V (6 ranges)
• Sample Rate: 8 to 860 SPS (programmable)
• Input Impedance: 10MΩ
• Accuracy: ±0.3% FSR (typical)
• Operating Temperature: -40°C to +125°C

Perfect For: Precision sensor interfacing, voltage monitoring, temperature measurement, pressure sensors, strain gauges, load cells, data logging systems, industrial automation, Arduino/Raspberry Pi projects, IoT devices, and any application requiring accurate high-resolution analog-to-digital conversion!
