Arduino Mega 2560 – High-Pin Count Development Board

Arduino Mega 2560 – High-Pin Count Development Board

The Arduino Mega 2560 is a large-scale microcontroller board built around the powerful ATmega2560 chip. It’s designed for projects that demand a high number of digital and analog connections, extensive memory, and robust performance — perfect for robotics, automation, advanced prototypes, and more complex embedded systems.

This board comes with a USB cable included, so you can plug it into your computer and start programming straight away using the Arduino IDE.

Key Features

• Based on the ATmega2560 microcontroller
• Operates at 5 V logic level
• Large number of I/O pins for flexible interfacing
• Compatible with most Arduino shields and accessories
• USB programming and power support included
• Ideal for complex applications requiring high expansion capability

Technical Details

The Arduino Mega 2560 features a rich set of capabilities to support sophisticated projects:

• Microcontroller: ATmega2560
• Operating Voltage: 5 V
• Recommended Input Voltage: 7–12 V
• Digital I/O Pins: 54 (with multiple PWM outputs)
• Analog Inputs: 16
• Flash Memory: 256 KB for storing programs
• SRAM: 8 KB for runtime data
• EEPROM: Non-volatile memory for data storage
• Clock Speed: 16 MHz crystal
• USB Communication: USB port for programming and serial monitoring

What You Can Build

Thanks to its expanded pin count and memory, the Mega 2560 is well suited for:

• Large robotic systems
• 3D printer controllers
• Complex sensor arrays
• Multi-motor automation projects
• Data logging systems
• Multi-shield setups
• IoT gateways and smart devices

Whether you need to interface with many sensors at once or run large sketches that don’t fit on smaller boards, the Mega offers the space and flexibility you need.

Compatibility and Ecosystem

The board works seamlessly with the Arduino IDE, making development straightforward for beginners and pros alike. You can take advantage of the vast library ecosystem to support:

• Communication modules (Bluetooth, WiFi, GSM)
• Display units (LCD, OLED)
• Motor and servo controllers
• SD card storage and data logging
• I2C and SPI peripherals

Getting Started

Starting your project with the Arduino Mega 2560 is simple:

1. Install the Arduino IDE on your computer
2. Connect the board using the included USB cable
3. Select “Arduino Mega 2560” in the tools menu
4. Choose the correct COM port
5. Upload your sketch and begin testing

This plug-and-play setup makes it ideal for both beginners and experienced makers.

Package Contents

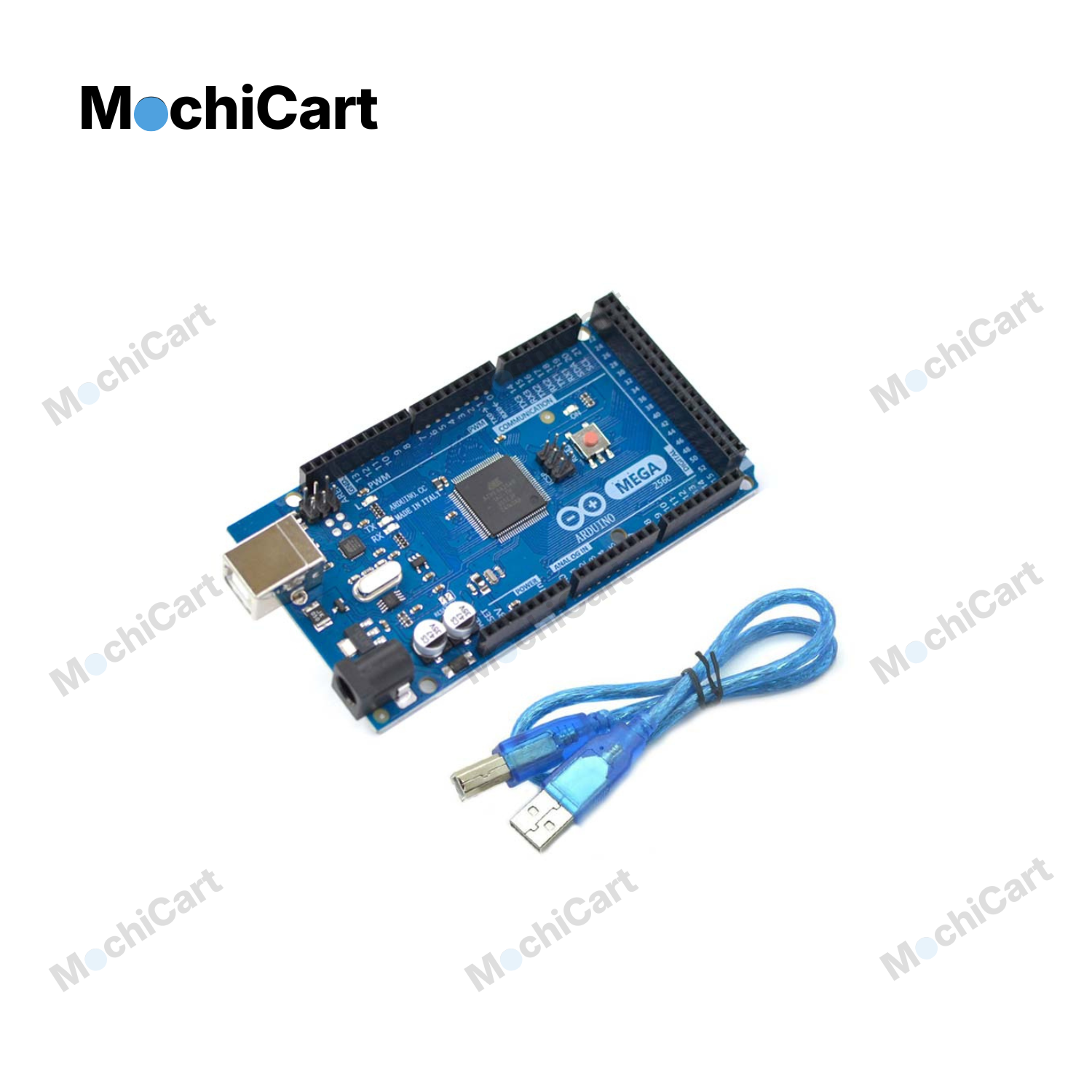

• 1 × Arduino Mega 2560 R3 board
• 1 × USB programming cable

Why It’s Great

The Arduino Mega 2560 stands out when your project outgrows smaller boards like the Uno. With its extensive pin count, larger program space, and broad shield compatibility, it’s a go-to choice for advanced projects in robotics, automation, data systems, and interactive installations.
