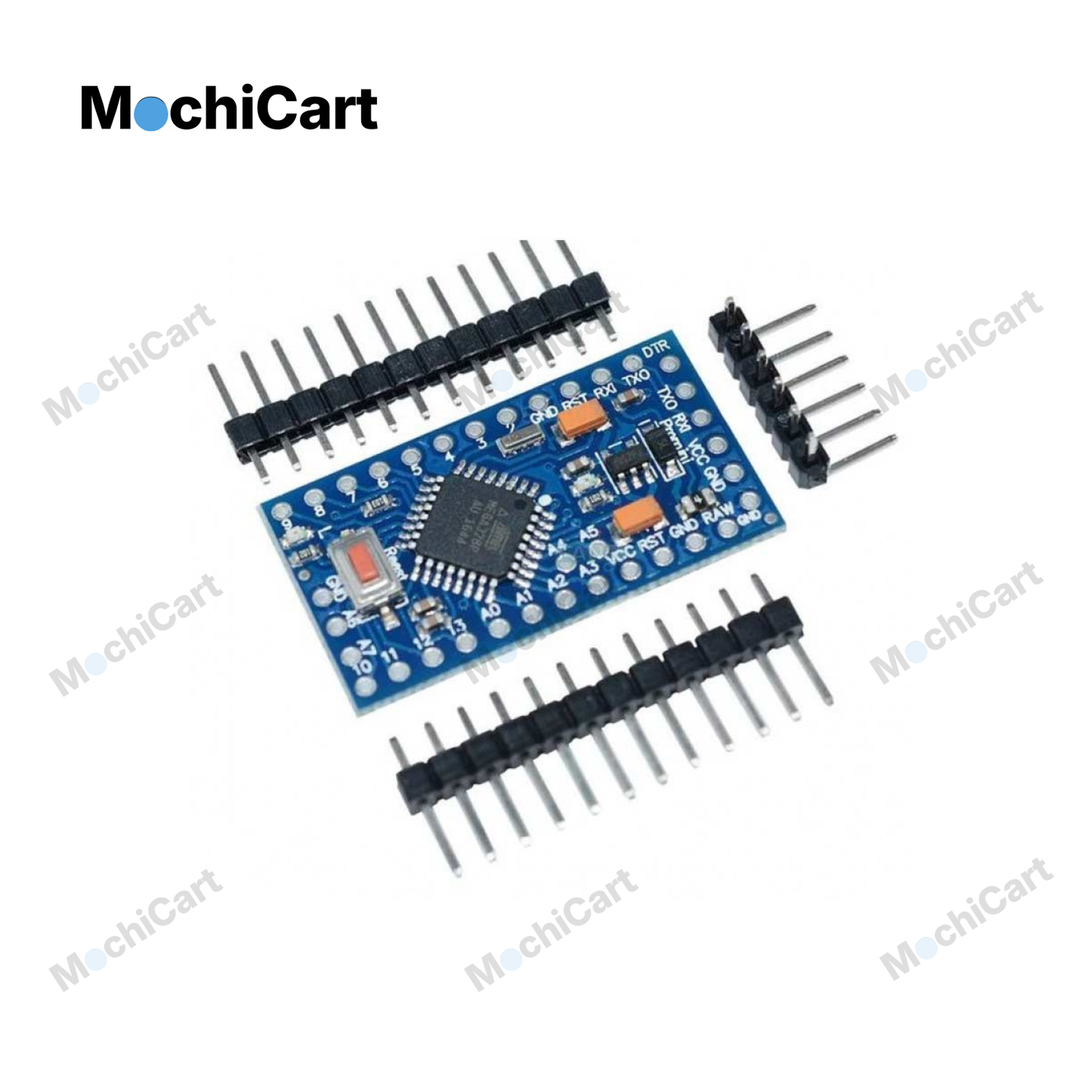

Arduino Pro Mini – Compact ATmega328P Microcontroller Board (5V, 16MHz)

Arduino Pro Mini – Compact ATmega328P Microcontroller Board (5V, 16MHz)

The Arduino Pro Mini is a tiny yet powerful microcontroller board based on the ATmega328P chip. Designed for projects where space is limited, it offers all the core Arduino functionality in a small form factor, making it ideal for embedded applications, wearables, mini-robots, and low-power devices.

Unlike larger Arduino boards, the Pro Mini does not include a USB interface; programming is done via an external USB-to-serial adapter, giving the board a more compact design and lower power consumption.

Key Features

• ATmega328P microcontroller for reliable performance
• Operating voltage: 5 V, clock speed: 16 MHz
• Compact size suitable for space-constrained projects
• Can run standard Arduino sketches
• Low power consumption for battery-powered applications
• Compatible with the Arduino IDE
• Supports most Arduino libraries and shields

Technical Specifications

• Microcontroller: ATmega328P
• Operating Voltage: 5 V
• Input Voltage: 7–12 V recommended
• Digital I/O Pins: 14 (6 provide PWM output)
• Analog Input Pins: 6
• Flash Memory: 32 KB (0.5 KB used by bootloader)
• SRAM: 2 KB
• EEPROM: 1 KB
• Clock Speed: 16 MHz
• Programming Interface: External USB-to-serial adapter

Applications

The Arduino Pro Mini is suitable for:

• Embedded systems and compact robotics
• Wearable electronics and IoT devices
• Miniature sensor and actuator projects
• Low-power automation and monitoring systems
• Portable DIY electronics and prototypes

Its small footprint allows integration into projects where traditional Arduino boards would be too bulky.

Getting Started

1. Connect the Pro Mini to a computer using a compatible USB-to-serial adapter
2. Install the Arduino IDE and select “Arduino Pro Mini”
3. Choose the correct COM port
4. Upload your sketch and start experimenting

This setup makes it easy to create compact, functional electronics without sacrificing standard Arduino features.

Why Choose Arduino Pro Mini

• Ultra-compact and lightweight design
• Standard Arduino functionality in a tiny package
• Low power operation for battery-driven projects
• Compatible with a wide range of sensors, modules, and shields
• Ideal for embedded, wearable, or space-constrained projects
