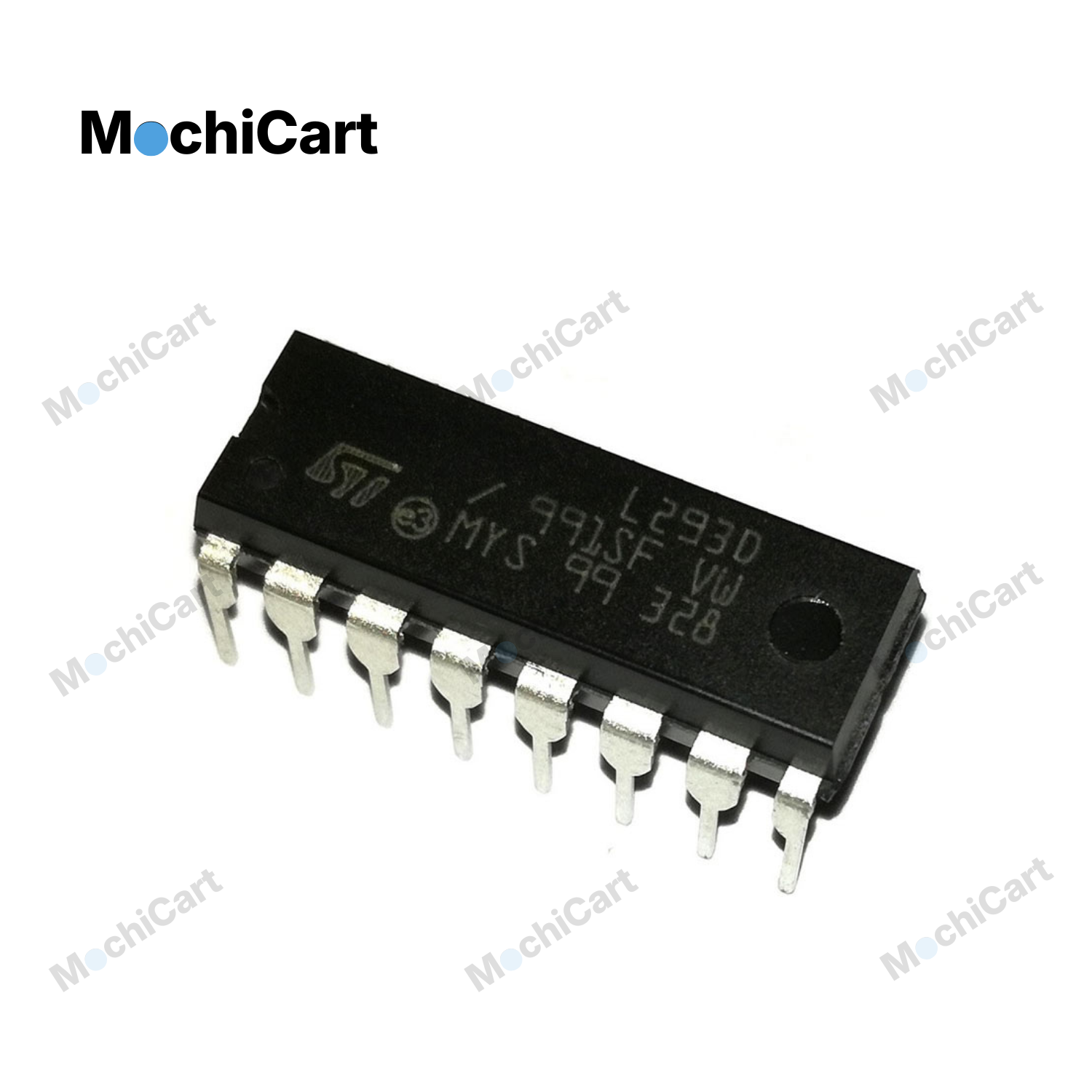

L293D Motor Driver IC

The L293D Motor Driver IC is a widely used dual H-bridge motor driver designed to control DC motors and stepper motors with ease. It allows low-current microcontrollers like Arduino, ESP32, ESP8266, and Raspberry Pi to control higher-current motors by acting as an interface between the control circuit and the motor power supply.

With built-in flyback diodes for protection and the ability to drive two DC motors independently (or one stepper motor), the L293D is ideal for robotics, automation, and embedded system projects.

🔹 Key Features

1. Dual H-bridge motor driver
2. Drives two DC motors or one stepper motor
3. Motor supply voltage: 4.5V to 36V
4. Logic supply voltage: 5V
5. Output current up to 600mA per channel
6. Built-in internal protection diodes
7. TTL-compatible logic inputs
8. Available in DIP and SMD packages

🔹 Applications

1. Robotics projects
2. Line-following and obstacle-avoiding robots
3. Motorized vehicles and RC cars
4. Conveyor belt control systems
5. Stepper motor control
6. Arduino and microcontroller-based automation
