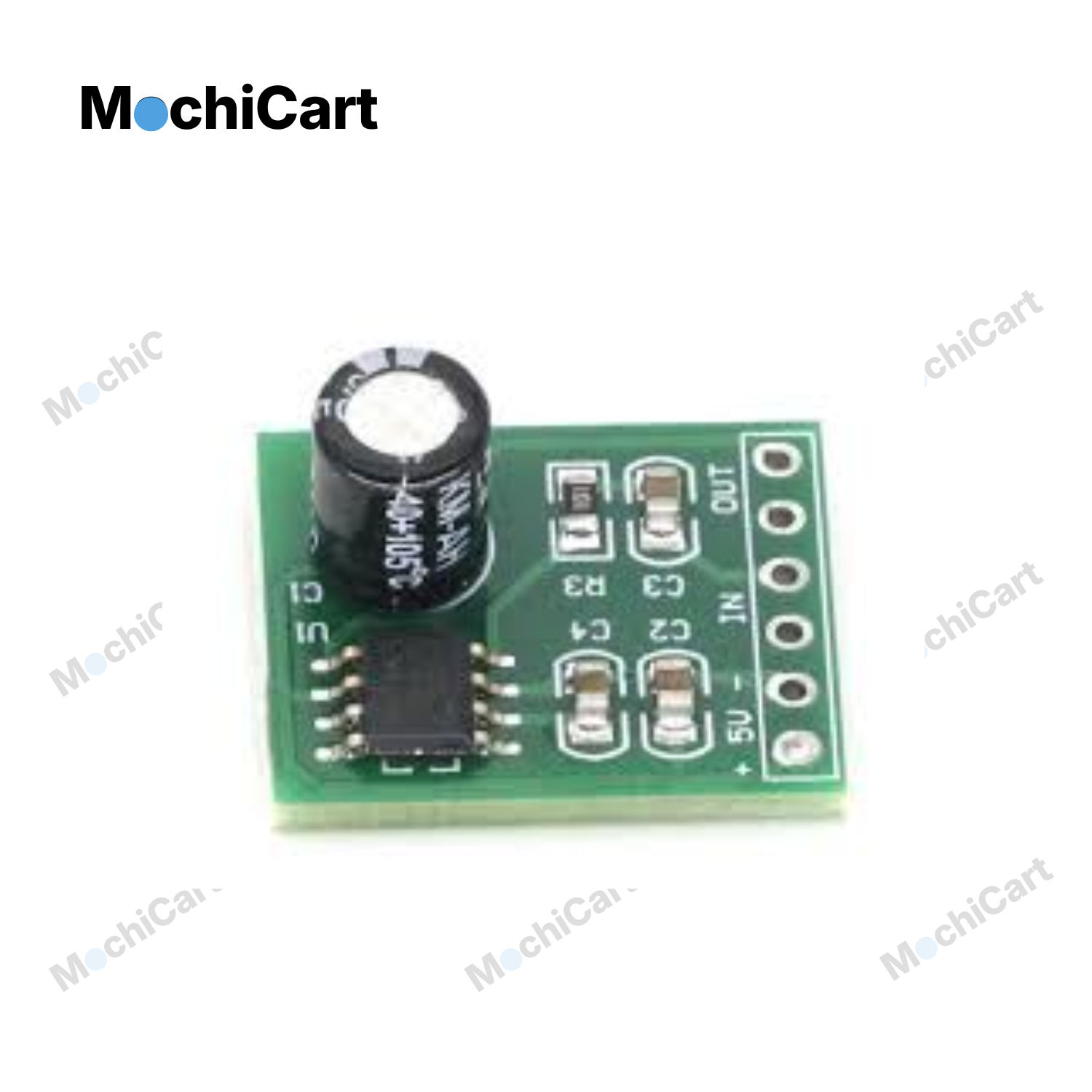

XH-M125 XPT8871 Mono Amplifier Board

Unleash powerful mono audio with the XH-M125 XPT8871 Mono Amplifier Board. This high-performance amplifier module delivers exceptional power output in a compact form factor, perfect for subwoofers and high-wattage audio applications.

Key Features:

• Powerful 30W mono output for deep, rich bass
• Based on the advanced XPT8871 Class-D amplifier chip
• High efficiency up to 90%—minimal heat generation
• Wide voltage input: DC 8-24V for versatile power options
• Built-in volume control potentiometer
• Over-temperature, over-current, and short-circuit protection
• Low distortion and excellent sound quality
• Easy-to-use screw terminal connections

Technical Specifications:

• IC Chip: XPT8871
• Power Output: 30W (mono)
• Operating Voltage: DC 8-24V
• Efficiency: Up to 90%
• Frequency Response: 20Hz - 20KHz
• Speaker Impedance: 4-8Ω
• Protection: Thermal, over-current, short-circuit
• Model: XH-M125

Perfect For: Subwoofer systems, mono speaker projects, car audio amplification, active speaker builds, bass enhancement systems, and high-power DIY audio applications. Ideal for projects requiring serious power and reliability in a single-channel configuration.
