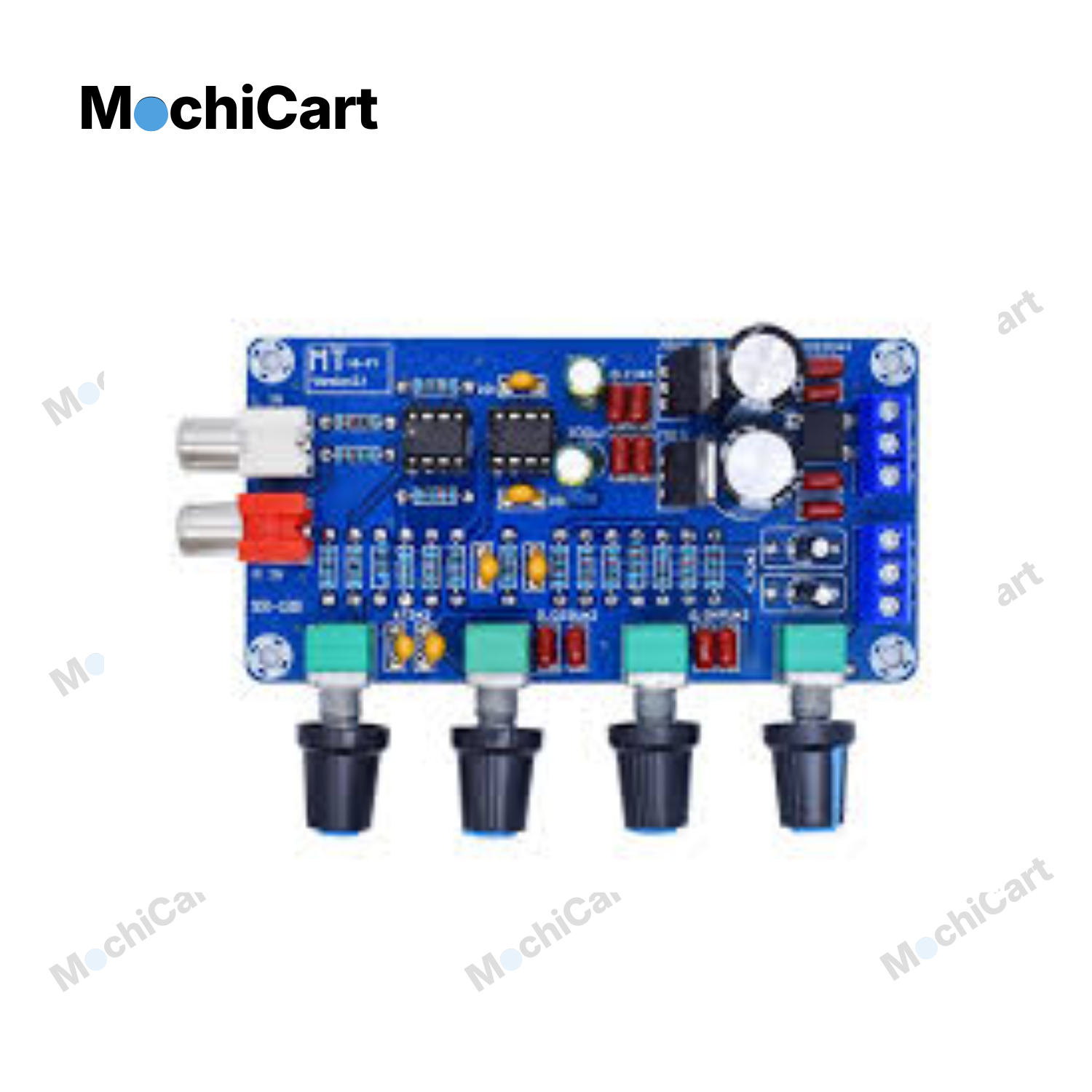

XH-M164 NE5532 Dual Tone Preamplifier Board

Enhance your audio system with the XH-M164 NE5532 Dual Tone Preamplifier Board. This professional-grade preamp module features premium NE5532 op-amps and comprehensive tone controls, delivering audiophile-quality sound shaping and signal amplification for discerning audio enthusiasts.

Key Features:

• Premium NE5532 dual op-amp chips for superior audio quality
• Dual-channel stereo preamplifier
• Independent bass and treble tone controls per channel
• Volume control with smooth adjustment
• Low noise and low distortion circuitry
• High signal-to-noise ratio for crystal-clear audio
• Wide frequency response for full-range audio
• Quality audio-grade components throughout
• Dual power supply: DC ±12V to ±15V
• Gold-plated RCA input/output connectors
• Professional PCB design with ground plane

Technical Specifications:

• Model: XH-M164
• IC Chip: NE5532 (dual op-amp)
• Channels: 2 (stereo)
• Operating Voltage: DC ±12V to ±15V (dual supply)
• Frequency Response: 20Hz - 20KHz (±0.5dB)
• Input Impedance: 47KΩ
• Output Impedance: 600Ω
• SNR: ≥100dB
• THD: <0.01% (at 1KHz)
• Bass Control: ±12dB at 100Hz
• Treble Control: ±12dB at 10KHz
• Gain: Adjustable 0-20dB
• Connectors: RCA (gold-plated)

Perfect For: High-fidelity audio systems, audiophile preamp stages, home theater setups, studio monitoring, active speaker systems, headphone amplifiers, audio mixing applications, and any project requiring professional-grade tone control and signal preamplification with exceptional audio quality!
