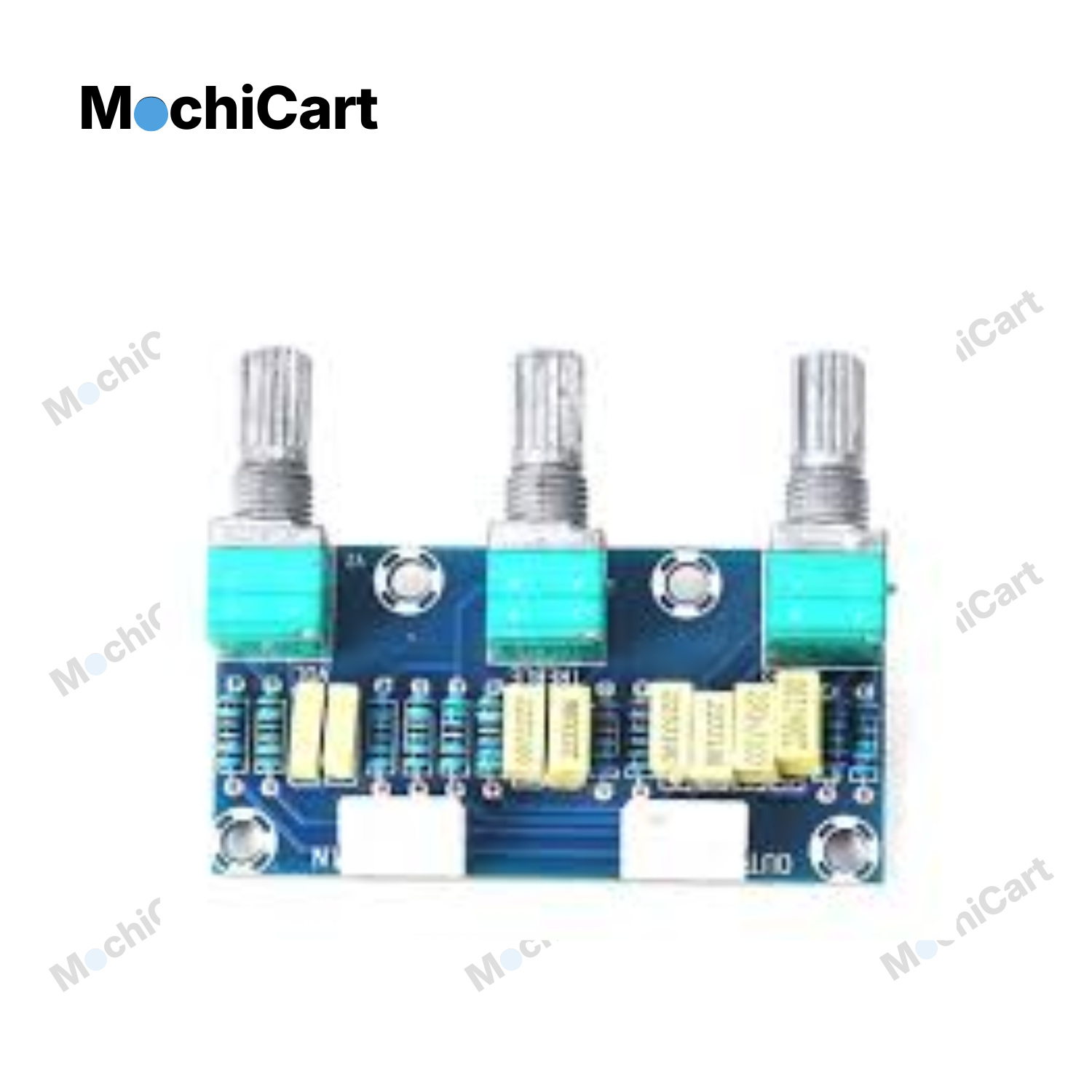

XH-M802 Passive Tone Board for Volume Control

Take complete control of your audio with the XH-M802 Passive Tone Board. This versatile preamp module offers comprehensive tone shaping and volume control without requiring external power, making it the perfect addition to any audio amplifier project.

Key Features:

• Passive design - no power supply required
• Independent bass and treble tone controls
• Smooth volume control potentiometer
• High-quality audio-grade components
• Minimal signal loss and low distortion
• Dual-channel stereo operation
• Easy integration with any amplifier board
• Compact PCB design with clear labeling
• Durable potentiometers for long-lasting performance

Technical Specifications:

• Type: Passive tone control board
• Channels: 2 (stereo)
• Controls: Volume, Bass, Treble
• Power Required: None (passive circuit)
• Frequency Response: 20Hz - 20KHz
• Bass Control: ±12dB at 100Hz
• Treble Control: ±12dB at 10KHz
• Input/Output: RCA or 3.5mm compatible
• Model: XH-M802

Ideal Applications: DIY amplifier projects, home audio systems, active speaker builds, car audio installations, preamp circuits, and any audio project requiring tone adjustment and volume control. Perfect for customizing your sound signature without adding complexity or power requirements!
